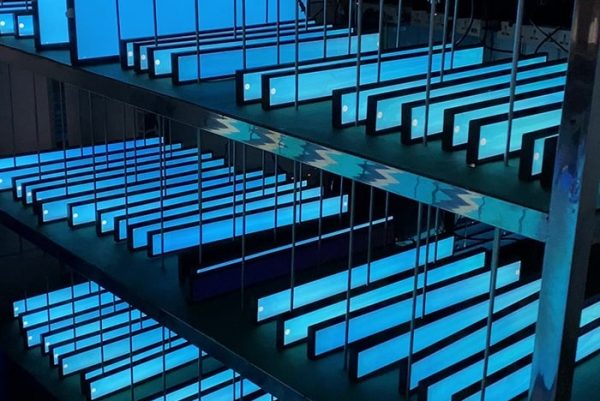

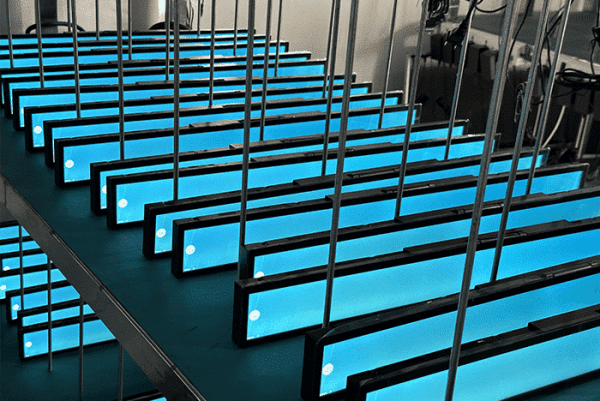

23inch In-cell Touch Digital Shelf Edge Display Factory Actual Shot
Specifications
LCD Specs
Diagonal Size
23.1"
Panel Type
IPS LCD Panel
Active Area
585.22(H) ×48.16(V)mm
Resolution
1920×158(RGB) 83PPI
Brightness
700cd/㎡ (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Color
16.7M , 72% NTSC
Backlight
WLED
Viewing Angles
88/88/88/88 (Typ.)(CR≥10)
Response Time
9.5 (Typ.)(G to G) ms
Frequency
60Hz
Lifespan
≥30000 hours
Motherboard Spec
CPU
Rockchip PX30
RAM
1G DDR3
ROM
8G EMMC
Memory Extension
Memory extension
Operation System
Android & Linux System Optional
Intetnet
Support 2.4G WIFI connection
RTC Real Time Clock
Support timing on / off function

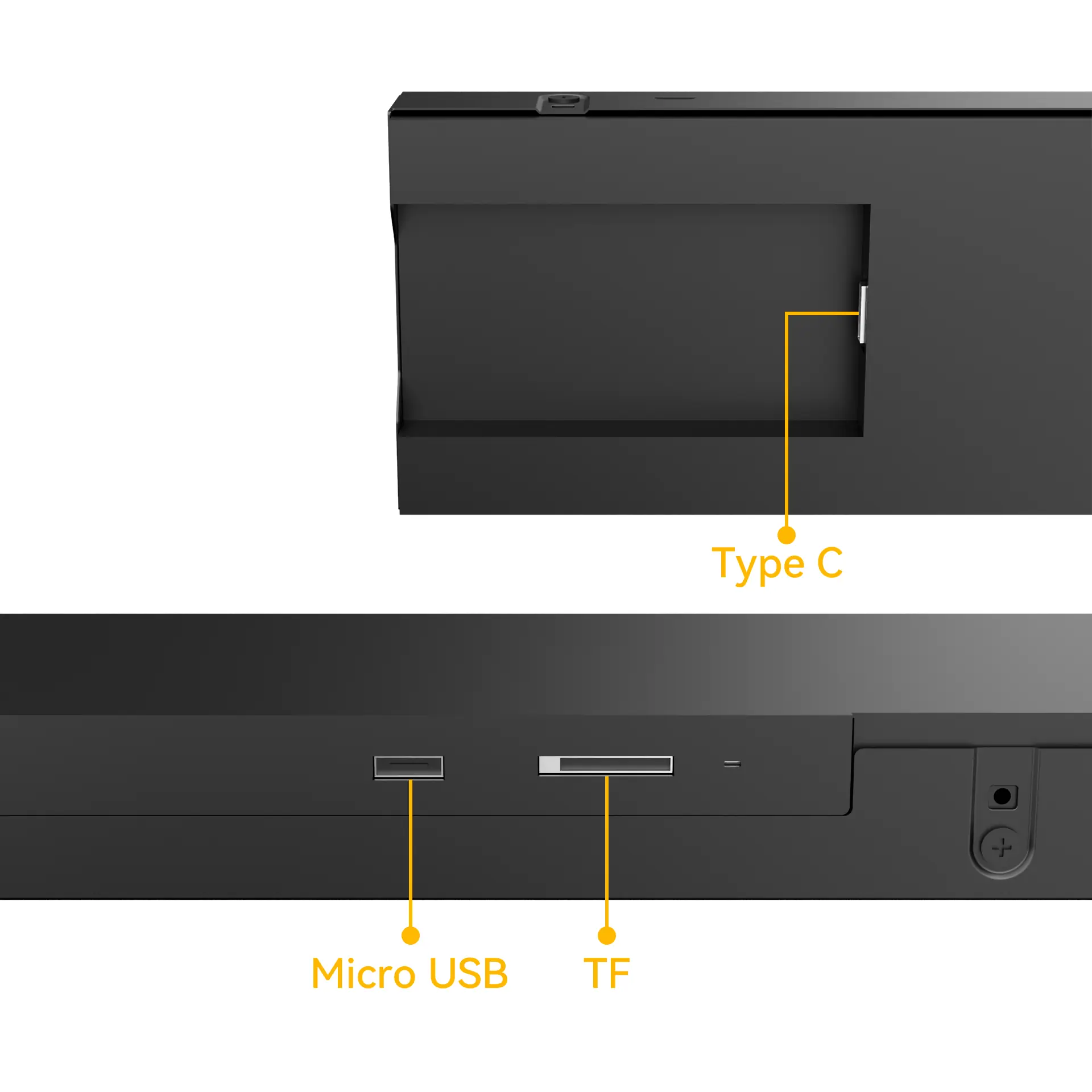

Interface
TF Card Slot
1
Micro-USB(OTG)
1
Type-c(DC 12v)
1
Display Spec
Operating Voltage
100-240V (50/60Hz)
Power Consumption
≤16W

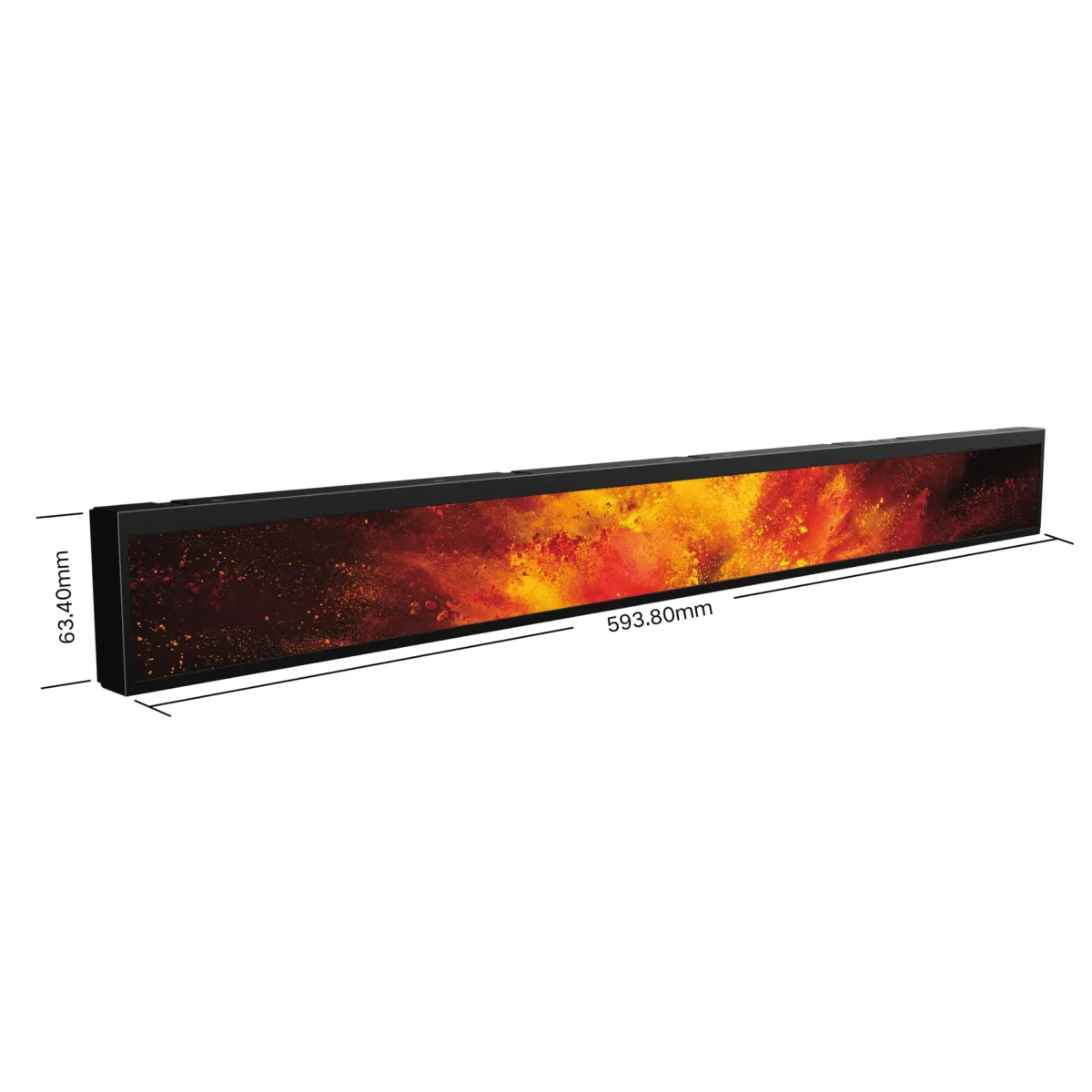

Outer Dimensions
597.2*61.8*15mm

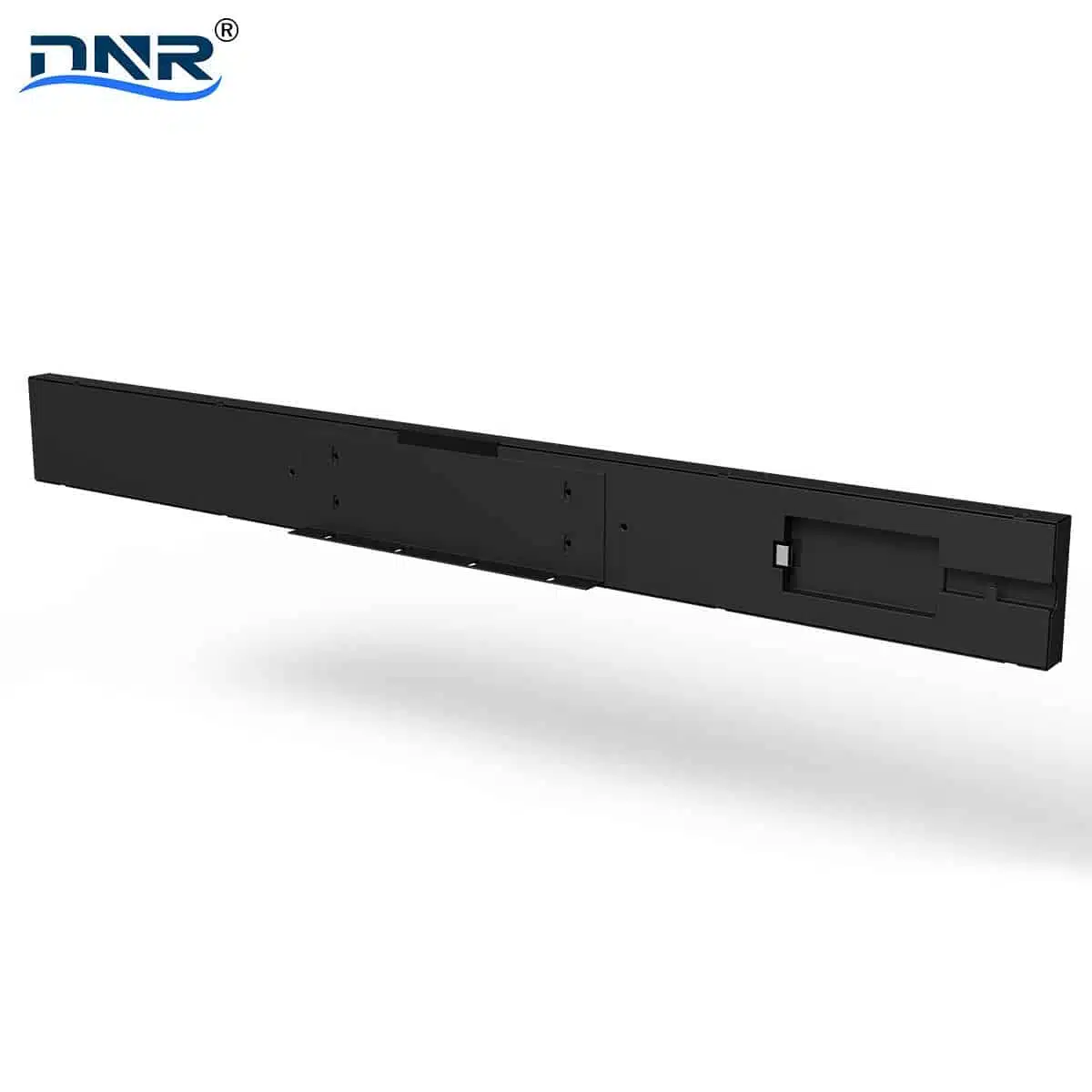

Installation
Mounting bracket
Materials
Sheet Metal materials
N.W
≤0.85KG
Housing Treatment
Black metal paint
Environment
Storage Environment
Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working environment
Temperature：-10℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Packing List
Display
1pc
OTG/Cable
1pc (OTG cable，micro USB to USB 2.0)
Adapeter
1pc (12V-2A)
Bracket
1pc
Touch
Touch Technology
In-cell Touch Screens
Technical Refinement
Ultra-thin design: 15mm
Transportation Protection
Outer Box size
820mm*300mm*140mm
Dimensions After Corner Protection
850mm*350mm*140mm
Certifications
CE
Issued by SGS
RoHS
Issued by SGS
REACH
Issued by SGS
FCC ID
Issued by SGS
