Android 8.1 [Android 11 for optional]
Daisy Chain Playback Display
HDMI & VGA Connect Devices
3 Years Warranty
1080P up-to 4K
12V DC – 24V DC
Optional PCAP & IR Multi Touch Screens
New customers can use the CMS backend for free for one year
29inch Stretched Bar LCD
Colors can be customized according to your preferences
29inch Stretched LCD Display Specifications
| Model | DSB245 |
|---|---|
| Dimensions(mm) | 721*226.25*40.3mm |
| Active area | 705.6(H)x198.45(V)mm |
| Resolution | 1920*540(RGB) 69PPI |
| Brightness | 700cd/㎡ (Typ.) |
| Viewing angles | 89/89/89/89 (Typ.)(CR≥10) |
| Frequency | 60Hz |
| Lifespan | ≥50000 hours |
| CPU | Rockchip PX30 [RK3566 for optional] |
| RAM | 1G DDR3 [2G DDR4 for optional] |
| ROM | 8G EMMC [16G/32G/64GEMMC for optional] |
| Memory extension | TF card expansion supports up to 64GB |
| System | Android 8.1 [Android 11 for optional] |
| Intetnet | Support 2.4G WIFI connection |
| Interfaces | 1*TF card slot/ 1* micro-USB(OTG)/ 1*USB/ 1*RJ45 [POE for optional] |
| Operating voltage | 100-240V (50/60Hz) |
| Power consumption | ≤50W |
| Materials | Sheet Metal materials |
| Housing treatment | Black metal paint |
| Speaker | Optional |
| Storage environment | Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working environment | Temperature：-10℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa |
29inch Stretched LCD Monitor Motherboard Specs
| CPU | Rockchip PX30 [RK3566 for optional] | |
|---|---|---|
| RAM | 1G DDR3 [2G DDR4 for optional] | |
| ROM | 8G EMMC [16G/32G/64GEMMC for optional] | |
| Memory extension | TF card expansion supports up to 64GB | |
| System | Android 8.1 [Android 11 for optional] | |
| Intetnet | Support 2.4G WIFI connection | |
| RTC real time clock | Support timing on / off function | |
| Interfaces | 1*TF card slot/ 1* micro-USB(OTG)/ 2*USB/ 1*RJ45/ 1*Earphone | |

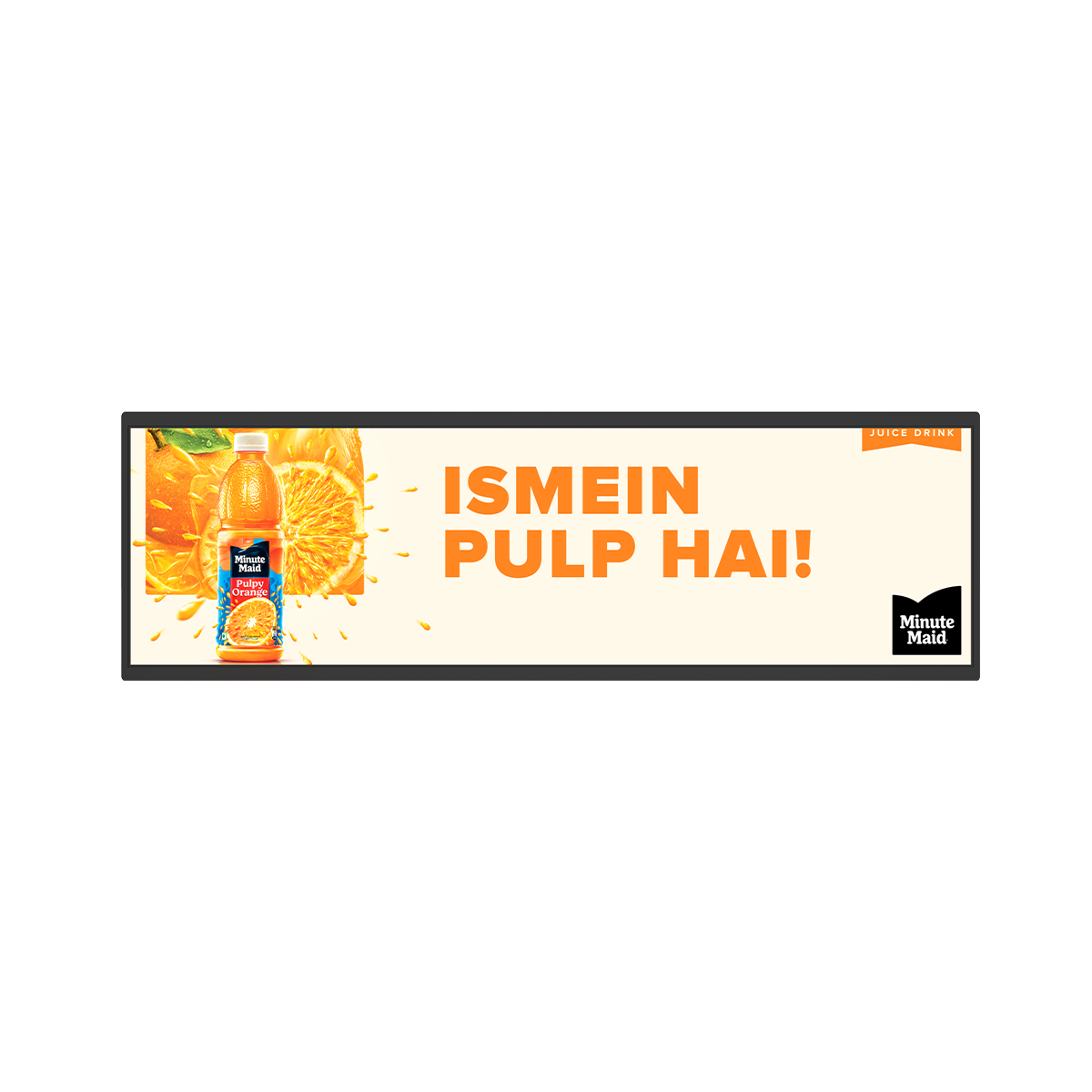

29inch Stretched LCD Display Photo Album
