43.1inch Stretched Bar LCD Display Model-DXB431

Application: Retail store, Mall shopping, Large supermarket chain, Supermarket shelf head advertising display.

Stretched Bar LCD Display Function: Indoor dynamic advertising and video playback
In-store brand building and establishing brand identity.
Display product price, photo, name
Display advertising and promotions

Stretched LCD Display Feature: Remote control program
interactive screen, Touch: Resistive touch, Infrared touch, PCAP/Capacitive Touch  optical touch optional, Wi-Fi link, Android system

3840*720P Pixel Android Stretch Bar Monitor Display 300cd/m2 Brightness​

  • 43.1 inches stretched bar display and 1000cd/㎡
  • Product features of ultra-wide stretched bar LCD screen
  • Loop playback and auto-play, seamless video switching in zero seconds.
  • USB, memory card automatically copy the display content to NAND FLASH 8G, simple and fast.
  • The video supports 90° rotation and supports horizontal and vertical screen playback.
  • Playlist: Play different content at different times (time can be set by day, week, month, year).
  • Stretched bar screen split screen design: two-split screen, three-split screen, multi-split screen.
  • Dynamic Marquee: Display product features in text.
  • Video editing tools: easy to operate, convenient to make videos.
  • Support 1080P HD decoding.
  • Super timing function: timing automatic switch machine, 24 hours without personnel management.
  • Android 9.0 system supports various national languages.
  • Support CMS publishing system, remotely update playback content.
  • Widely used in product introduction and event promotion in stores, shelf edge, grocery store, large retail supermarket, cosmetics store, optical store, pharmacy, 4S store, brand store and luxury store.

Choose the Stretched LCD Bar Display You Need​

Stretched Bar LCD With HDMI Input only

Native stretched LCD bar display with HDMI IN port allows connection to PC for external media playback to deliver impactful information. Influence customer decision directly at the POD.

All-in-one Android Stretched LCD Bar Display

Native stretched LCD bar display, can be integrated with built-in Android system media player, can be upgraded to web version without any additional hardware. You can also install third-party digital signage Android apps if needed.

43.1inch Stretched Bar Lcd Display Specification

ModelDXB431
Size43.1" LCD Panel
Active Area (mm)1073.78*201.3
Resolution3840*720

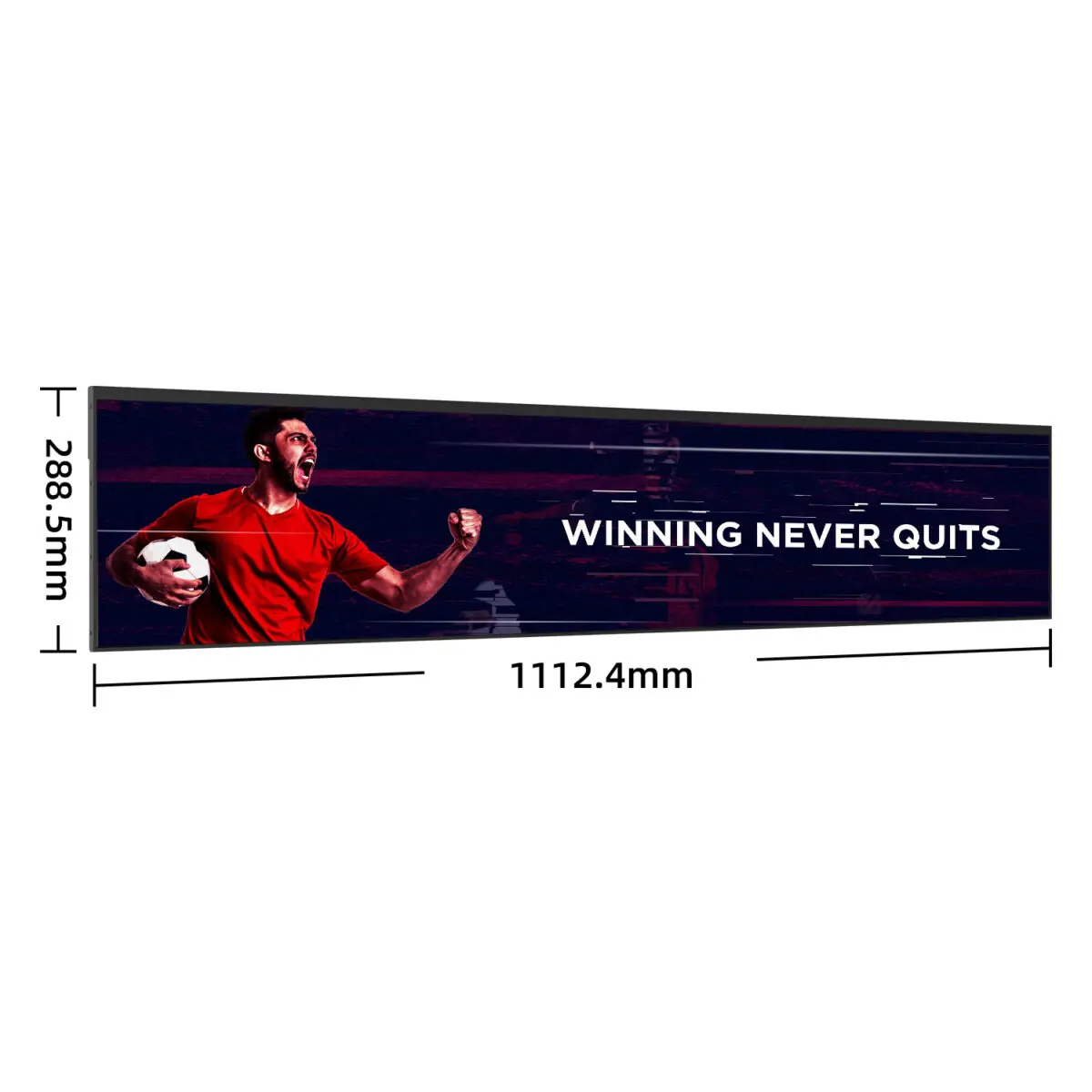

Dimensions(mm)1112.4*228.5*55
Brightness1000cd/㎡
Contrast1000:1
Viewing angles85/85/85/85 (Typ.)(CR≥10)
Lifespan≥50K hours
OSAndroid 9.0
Config (Ram / Rom)2G/ 8G
InternetEthernet/ WIFI/ BT
InterfacesTF/ USB/ RJ45/ HDMI In
SpeakerOptional
Operating voltage100-240V(50/60Hz)
Power consumption<100W
InstallationWall-mounted
Net WeightTBA
Storage temperature-20℃~60℃
Opearating temperature0℃~45℃

How Do Customers Use Our Stretched Bar Screen?

In the retail industry, we have all kinds of customers and we know how to meet their needs. Some of our customers choose to have their entire store connected with our shelf edge displays. And other customer choices will want to start with other specific products. Below, we list 3 simple bar screen applications in retail, you can click to read carefully.

Coca-Cola Dynamic Pricing

DNR LCD implements a digital dynamic pricing solution for The Coca-Cola Company chain stores. Play product prices, brand history and development information.

Electronic Products Shelf Screens

Turn your optical shop into a modern retail business that stands out from your competitors. You can edit product prices, video playback, promotions and other information on the APP.

Premium Wine Shelf Screen

DNR shelf LCD screen is based on Android technology. This digital Wine Shop creates a high level of attention and promotes the purchase decision of customers directly at eye level.

Why choose Our Stretched LCD Bar Didplay ?​

3 Years Warranty

All of our stretched lcd bar monitors come with an industry standard 3 years commercial warranty, but if you want an extended warranty this can be upgraded to 5 years at the time of purchase.

Commercial Quality

CE, RoHS, REACH, FCC ID are issued by SGS official agency. This is a global business certification that highlights a commitment to innovation, sustainability and adherence to global business practices.

Project Support

If you need samples for testing, we can send you a device

Customrize

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Industry Expertise

What sets us apart from other supplying lcd display manufacturers is that we are an established bar supplier that is dedicated to the retail field industry. Our LCD panels are from INNOLUX, AUO, BOE, LG, SAMSUNG, AUO and other excellent - well-known brand cooperation.

Technical Support

We support you from the moment you receive your product, throughout its warranty period and even after it has expired. If you have any questions when setting up or using the product, we can support you by phone or email

Need a Stretched LCD Bar Touchscreen For Retail? No problem! Contact US

We have IP touch, PCAP touch available for stretched lcd bar screen. It can be fully customized according to glass size, number of contact points, thickness, etc.
We offer a wide range of Stretched LCD Bar Screens ideal for various in-store shelf digital signage applications such as retail shelf edge pricing, retail shelf edge advertising and multi-shelf for supermarkets, optical stores, grocery stores, liquor stores, clothing stores Digital signage and other retail applications. This smart shelf system is an end-to-end digital retail display solution, ideal for retail POS applications, it can turn your store into a modern retail enterprise to enhance customers’ shopping experience.
