Specifications
LCD Spec
Diagonal Size
8.8"
Panel Type
IPS LCD Panel
Active Area
218.88(H) ×54.72(V)mm
Resolution
1920×480(RGB) 222PPI
Brightness
600cd/㎡ (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Display Color
16.7M , 50% NTSC
Backlight
WLED
Viewing
85/85/85/85 (Typ.)(CR≥10)
Response Time
30 (Typ.)(G to G) ms
Frequency
60Hz
Lifespan
≥30000 hours
Motherboard Spec
CPU
RK3566 Quad core ARM Cortex-A55
RAM
2G DDR4
ROM
16G EMMC
Memory Extension
TF card expansion supports up to 64GB
Operating System
Android 11
Intetnet
Support 2.4G WIFI connection
Display Color
Support timing on / off function

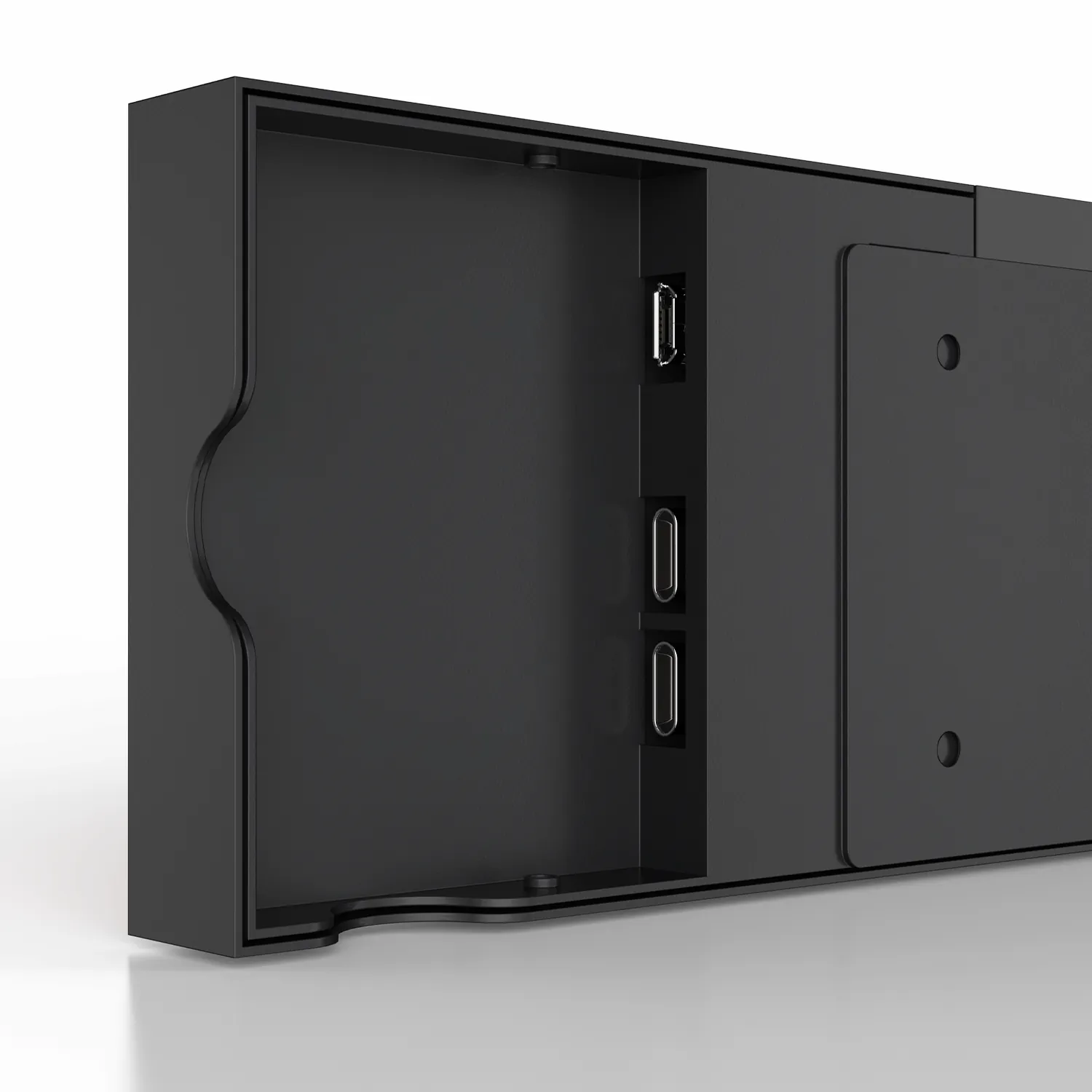

Interface
TF Card Slot
1
Micro-USB(OTG)
1
1*Type-c(DC 12v) [POE for optional]
1
Display Specs
Operating Voltage
100-240V (50/60Hz)
Power Consumption
≤10W
Outer Dimensions
240.6*69.6*16mm

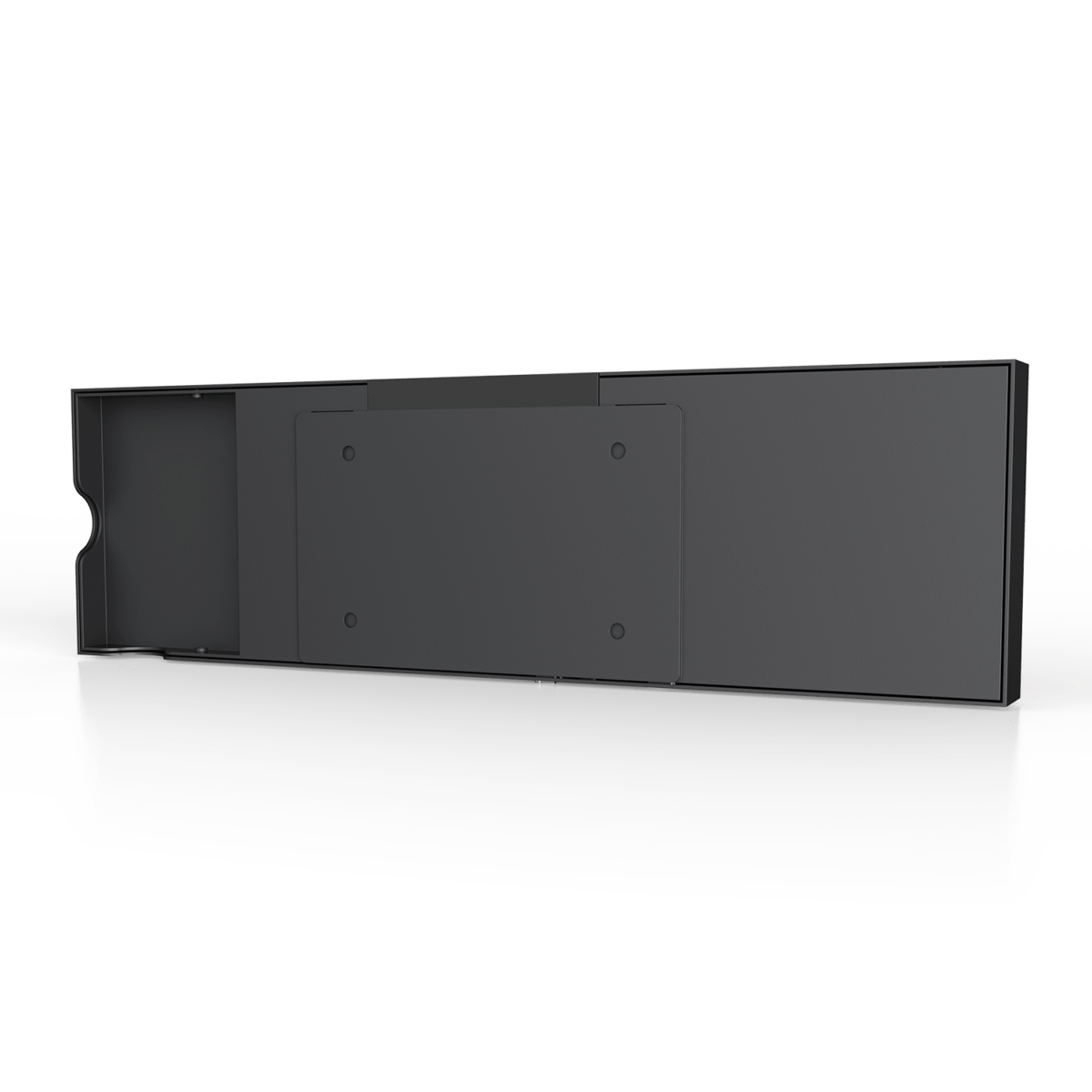

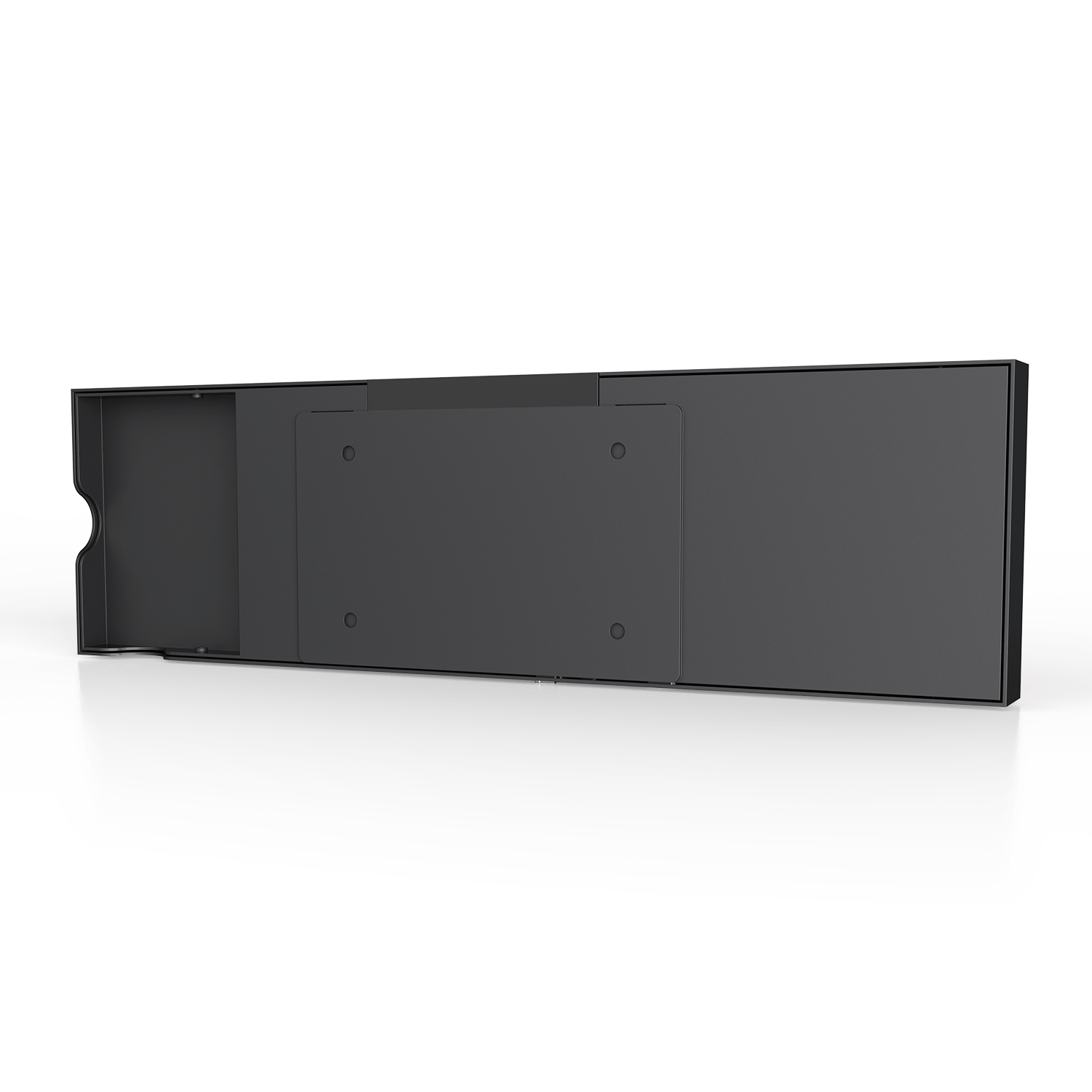

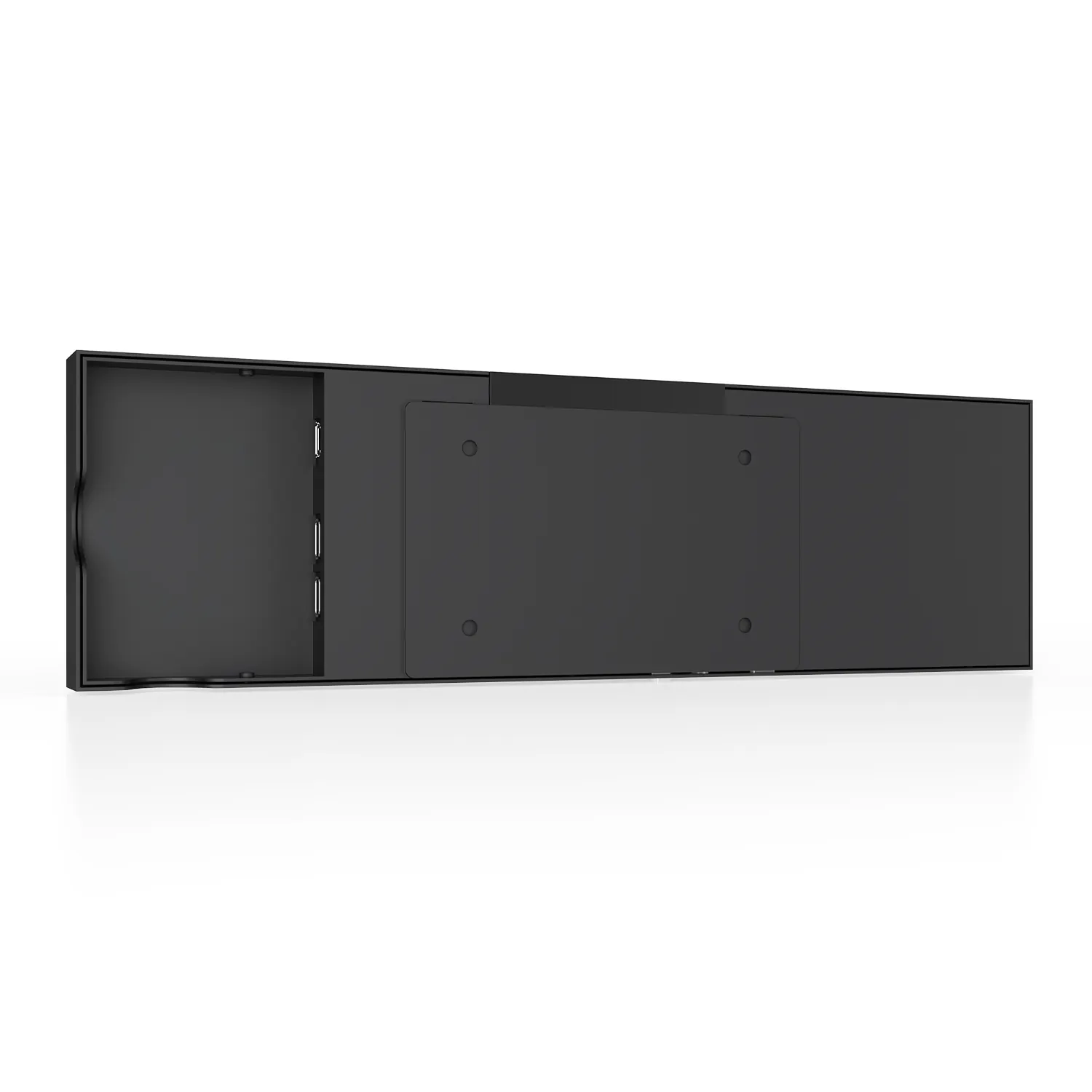

Installation
Mounting bracket
Materials
Sheet Metal materials
N.W
≤0.5KG
Housing Treatment
Black metal paint
Environment
Storage Environment
Temperature：-30℃～80℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment
Temperature：-20℃～70℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Packing Specification
Display
1pc
OTG/Cable
1pc (OTG cable，micro USB to USB 2.0)
Adapeter
1pc (12V-2A)
Bracket
1pc
Certifications
CE
By SGS
RoHS
By SGS
REACH
By SGS
FCC ID
By SGS
