Specifications
LCD Spec
Diagonal Size
35”
Panel Type
IPS LCD Panel
Active Area
877.824(H) ×45.72(V)mm
Resolution
3840×200(RGB) 111PPI
Brightness
500cd/㎡ (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Color
1.07B , 72% NTSC
Backlight
Backlight
Viewing Angles
89/89/89/89 (Typ.)(CR≥10)
Response Time
8 (Typ.)(G to G) ms
Frequency
120Hz
Lifespan
≥50000 hours
Motherboard Spec
CPU
T972 Quad core ARM Cortex-A55
RAM
2G DDR4
ROM
16G EMMC
Memory Extension
TF card expansion supports up to 128GB
Internet
Support 2.4G WIFI connection
Contrast Ratio
1000:1 (Typ.) (TM)
RTC Real Time Clock
Support timing on / off function
Interface
TF Card Slot
1
Micro-USB(OTG)
1
Type-c(DC 12v)
1
USB
1
Display Spec
Operating voltage
1
Power consumption
100-240V (50/60Hz)

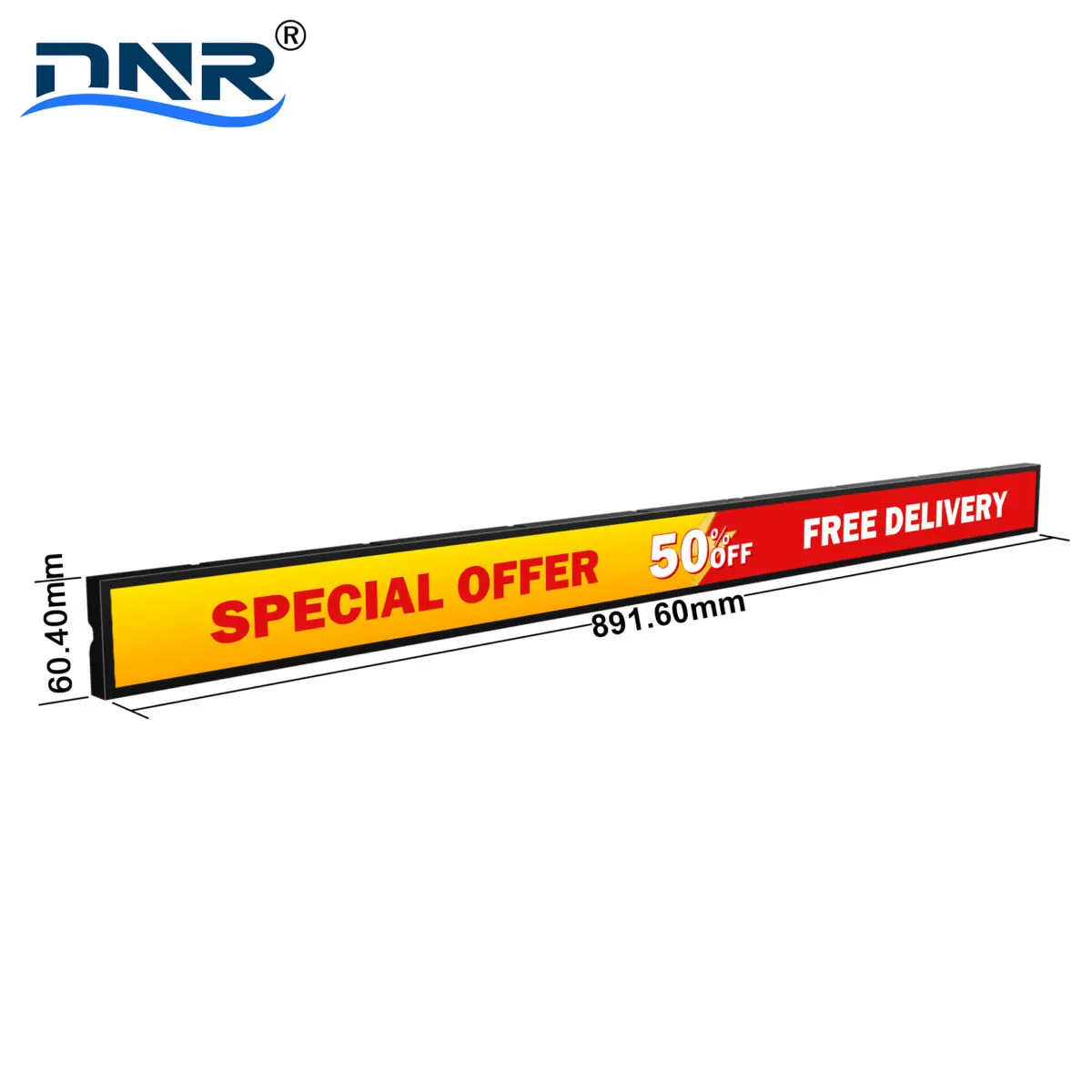

Outer Dimensions
891.6*60.4*23.1mm
Installation
Mounting bracket
Materials
Sheet Metal Mateerials
N.W
≤1.5KG
Housing Treatment
Black metal paint
Environment
Storage environment
Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working environment
Temperature：-10℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Packing List
Display
1pc
OTG/Cable
1pc (OTG cable，micro USB to USB 2.0)
Adapeter
1pc (12V-2A)
Bracket
1pc
Touch
Touch Technology
Capactive Touch
With Tempered Glass
With Tempered glass
Certifications
CE
Issued by SGS
RoHS
Issued by SGS
REACH
Issued by SGS
FCC ID
Issued by SGS
