Specifications
LCD Specs
Diagonal Size
47.1"
Panel Type
IPS LCD Panel
Active Area
1196.16(H) *49.84(V)mm
Resolution
3840*160(RGB) 81PPI
Contrast Ratio
1000:1 (Typ.) (TM)
Display Color
16.7M , 72% NTSC
Backlight
WLED
Viewing Angles
89/89/89/89 (Typ.)(CR≥10)
Response Time
9 (Typ.)(G to G) ms
Frequency
60Hz
Lifespan
≥50000 hours
Motherboard Spec
CPU
T972 Quad core ARM Cortex-A55
RAM
2G DDR4
ROM
16G EMMC
Memory Extension
TF card expansion supports up to 128GB
Operation System
Android & Linux System Optional
Intetnet
Support 2.4G WIFI connection
RTC Real Time Clock
T972 Quad core ARM Cortex-A55
Interface
TF Card Slot
1
Micro-USB(OTG)
1
Type-c(DC 12v)
1
USB
1
Display Spec
Operating voltage
100-240V(50/60Hz)
Power Consumption
≤35W

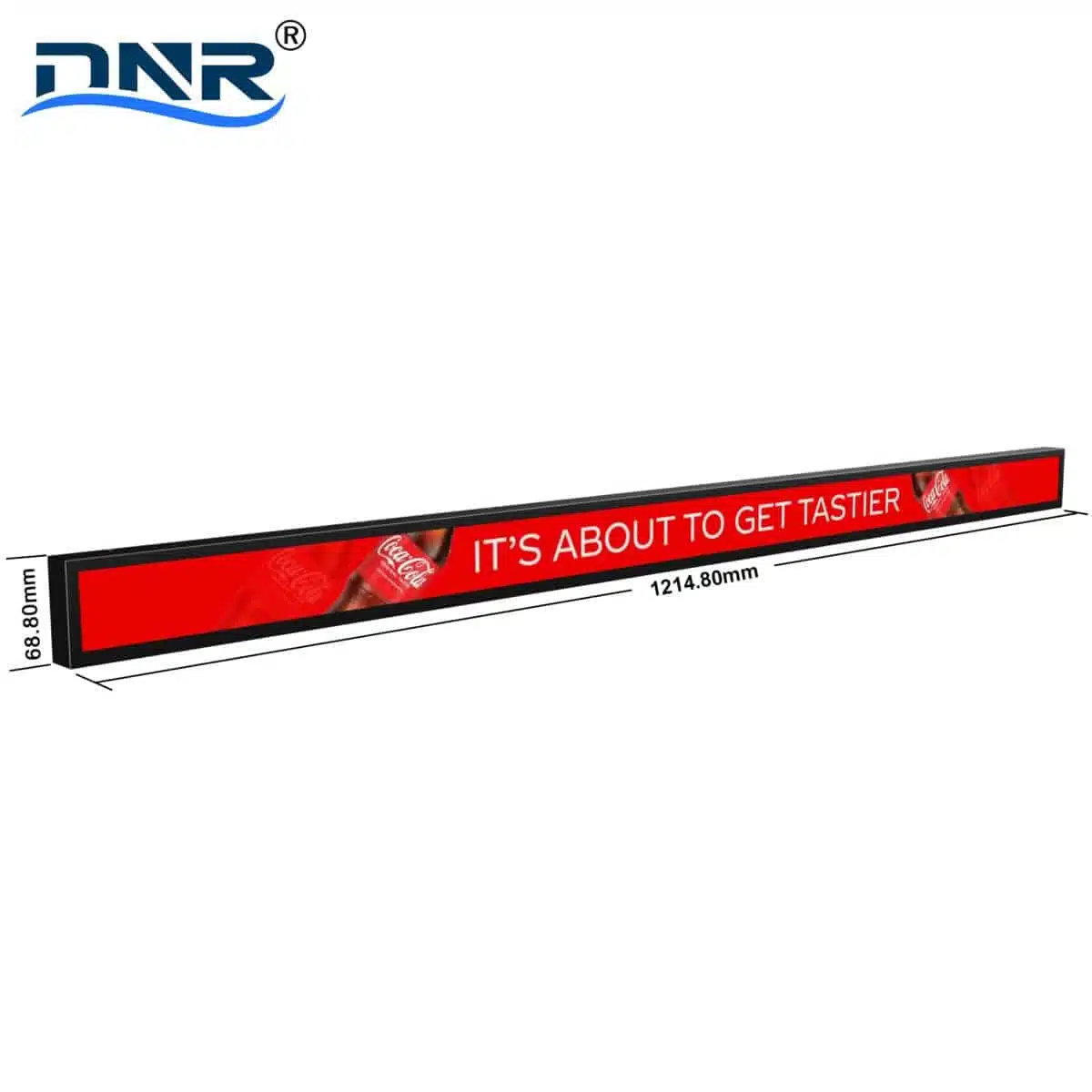

Outer Dimensions
1214.8*68.8*28mm

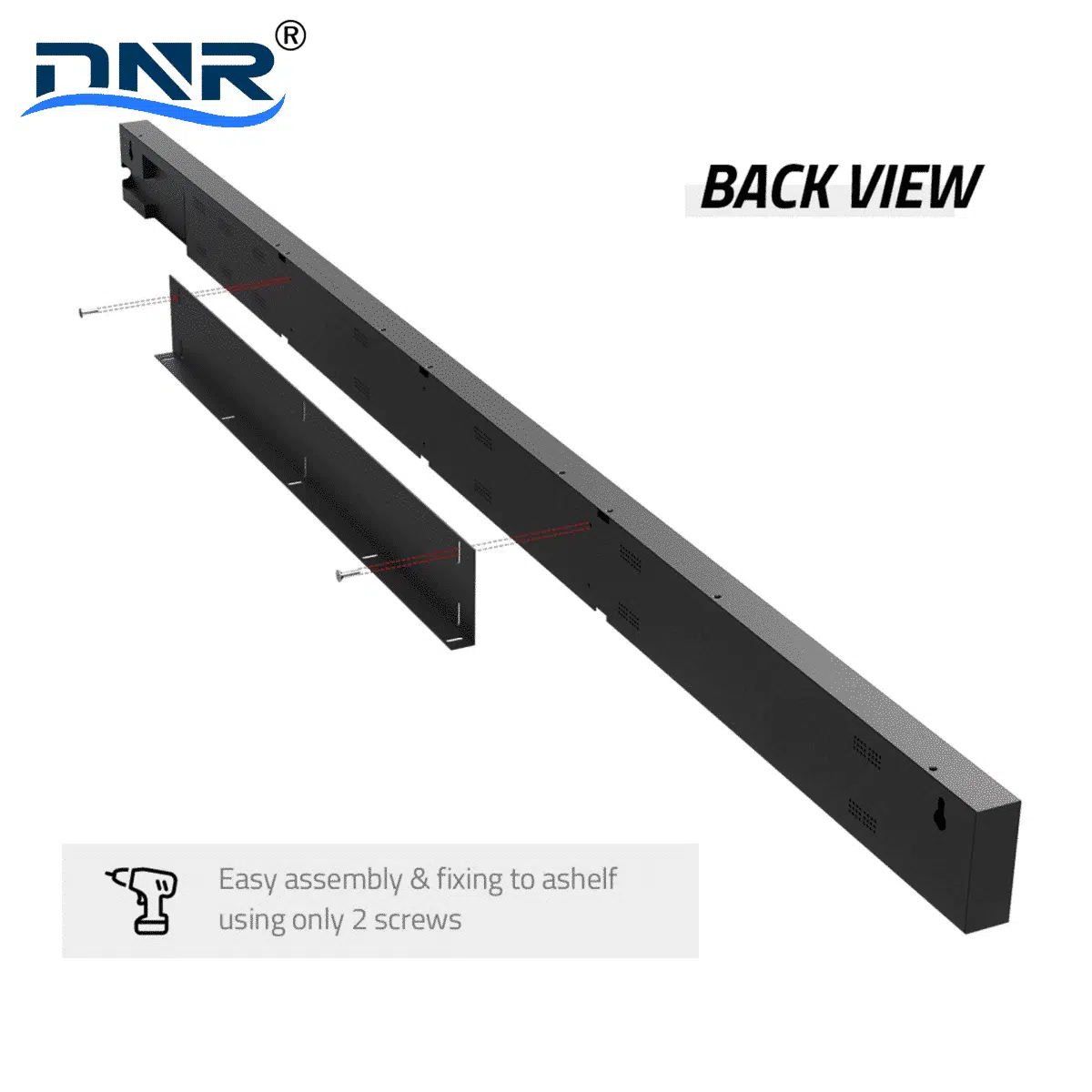

Installation
Mounting bracket
Materials
Sheet Metal materials
N.W
≤3KG
Surface Treatment
Black metal paint
Environment
Storage Environment
Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment
Temperature：-10℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Packing List
Display
1pc
OTG/Cable
1pc (OTG cable，micro USB to USB 2.0)
Adapeter
1pc (12V-3A)
Bracket
1pc
Touch
Touch Technology
PCAP Touch
Transportation Protection
Outer Box size
1290mm*380mm*140mm
Dimensions After Corner Protection
1310mm*380mm*140mm
Certifications
CE
Issued by SGS
RoHS
Issued by SGS
REACH
Issued by SGS
FCC ID
Issued by SGS
