24“ Ultra-Wide Stretched Diagital Signage Displays facturer and manufacturer

24inch Ultra Wide Stretched LCD Display Monitor with Model DSB240

Stretched Bar LCD Displays Manufacturer

Ultra wide Stretch LCD Screen Digital Signage Display provider. With the help of digital Stretch LCD Displays, you can add a number of different marketing content to be installed in your main hospitality venue. Ultra-wide Stretch Digital Signage Displays allow you to remotely control, design and edit and schedule content on any other screen.

Applications: Above Shelf Header Digital Screen Displays, Vending Machine Header Displays, Retail Commercial Environments, Transportation and in LCD Digital Signage projects.

Introduction to Stretched LCD Displays

Ultra-wide Stretched LCD Monitors do not have a fixed resolution and are customized according to the actual needs of the customer. Currently the main partner screen manufacturers for DNR displays are Samsung, AUO, Qunitron, LG and BOE, and offer IPS LCD panels.
These special looking stretched lcd displays function the same as today’s normal conventional LCD digital signage. Offering a novel combination of ultra-high resolution displays, dynamic content capabilities and flexible mounting options.

Notifications: CMS Software (Included Our own CMS software E-Signage for one year free trail use)

Choose a Stretched LCD Displays Solutions

Stretched Bar LCD Diplays With HDMI Input only

The ultra-wide stretch LCD display is equipped with an HDMI IN port for connecting to a computer for external media playback to deliver impactful marketing messages that influence customer decisions directly on the POD.

All-in-one Android Stretched Bar LCD Displays

Ultra wide stretched LCD display that can be inherited with the built-in equipped Android system media player and can be upgraded to the network version without any additional hardware. If required, you can install our Digital Signage Android program.

Description

24 inch Ultra-wide Stretched Digital Signage Display Specifications

Size	24"Stretched Bar LCD Panel
Active Area (mm)	597.888(W)×112.104(H) mm
Resolution	1920*360(RGB) 81PPI
Outer dimensions	617.513727.2mm
Brightness	300-1000cd/㎡
Display color	16.7M , 72% NTSC
Response time	30 (Typ.)(G to G) ms
Lifespan	≥30K hours
Storage environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working environment	Temperature：0℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa

Ultra Wide Stretched LCD Monitor Motherboard Specs

CPU	Rockchip PX30 [RK3566 for optional]
RAM	1G DDR3 [2G DDR4 for optional]
ROM	8G EMMC [16G/32G/64GEMMC for optional]
Memory extension	TF card expansion supports up to 64GB
System	Android 8.1 [Android 11 for optional]
Intetnet	Support 2.4G WIFI connection
RTC real time clock	Support timing on / off function
Interfaces	1TF card slot/ 1 micro-USB(OTG)/ 1*DC 12V [POE for optional]

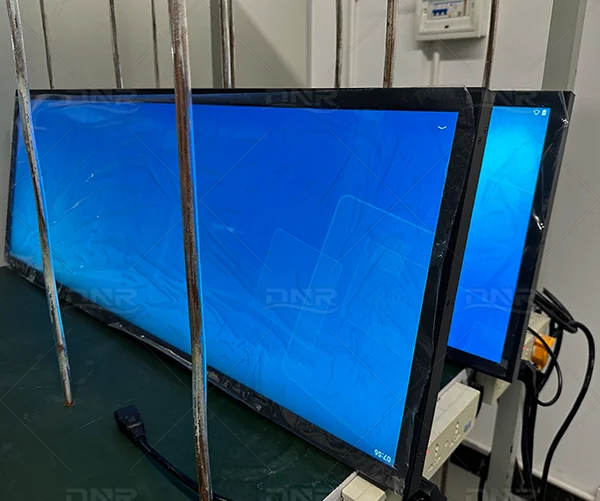

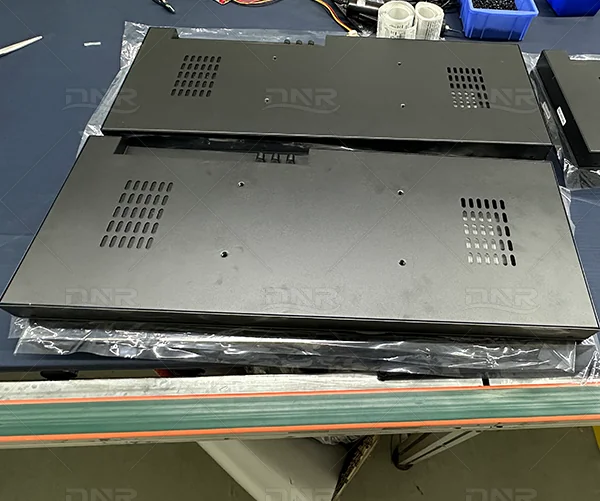

Stretched LCD Display Monitor Factory Photo

Retail Digital Shelf Edge Marketing Solutions

The digital shelving solution shown on the right is an example of a display. You can combine digital signage ultra-wide stretch display and digital shelf edge display to form a “Smart Digital Shelf” for POS, POS, and other marketing digital displays.DNR DISPLAY offers 4 different lengths of shelf edge digital marketing solutions: 600mm digital shelf, 900mm digital shelf, 1000mm digital shelf, and 1200mm digital shelf.

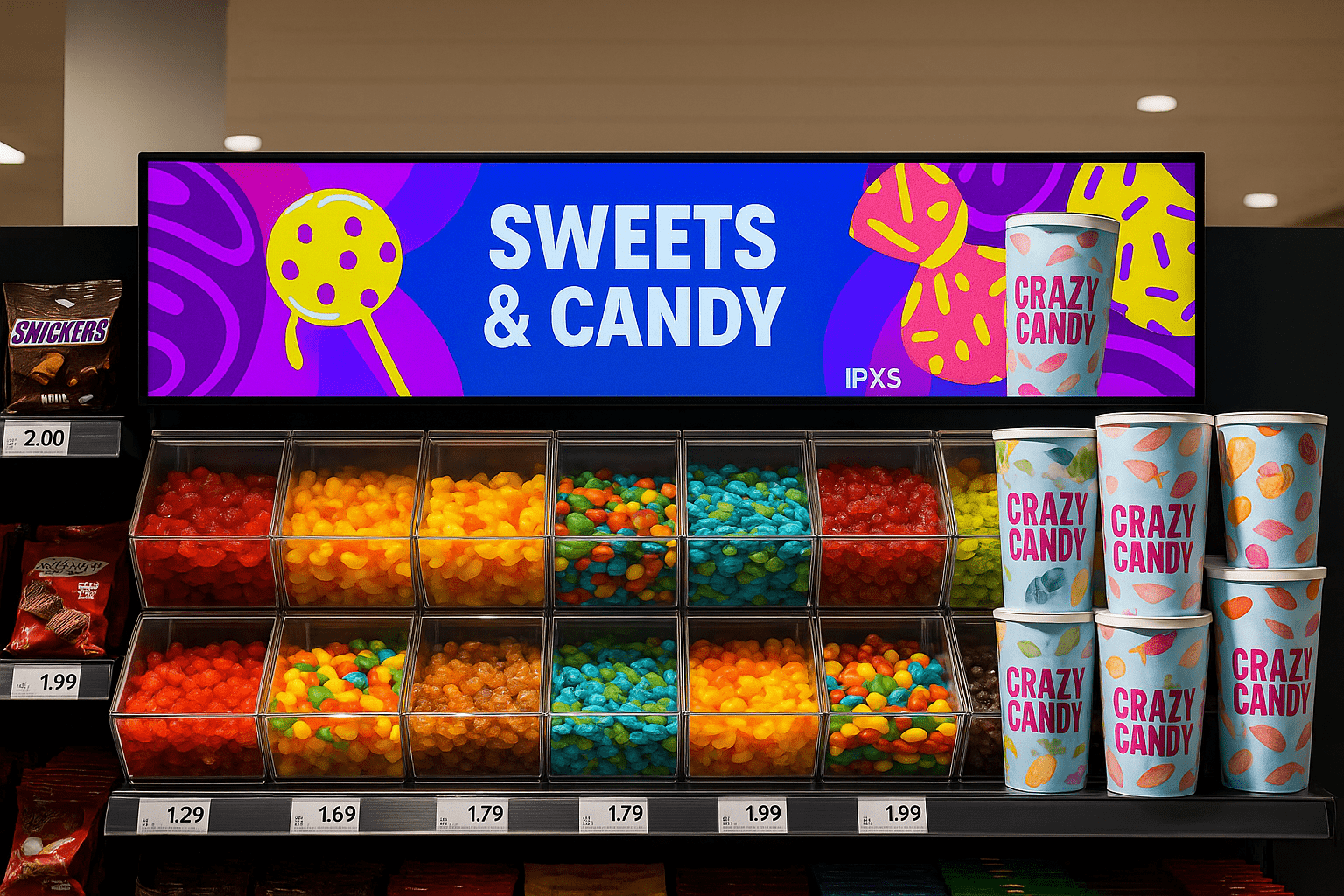

Stretched LCD Screen in Retail Applications Showcase

For more information about digital marketing solutions, contact DNR DISPLAY.
